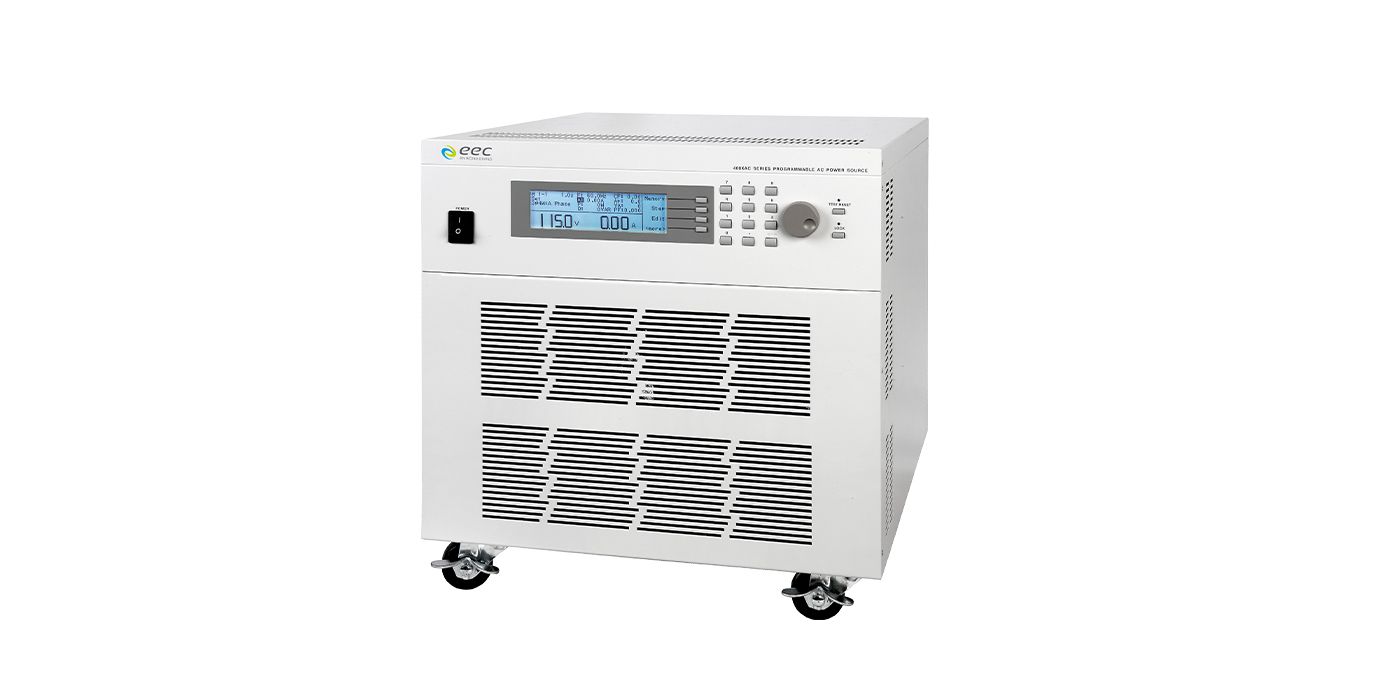

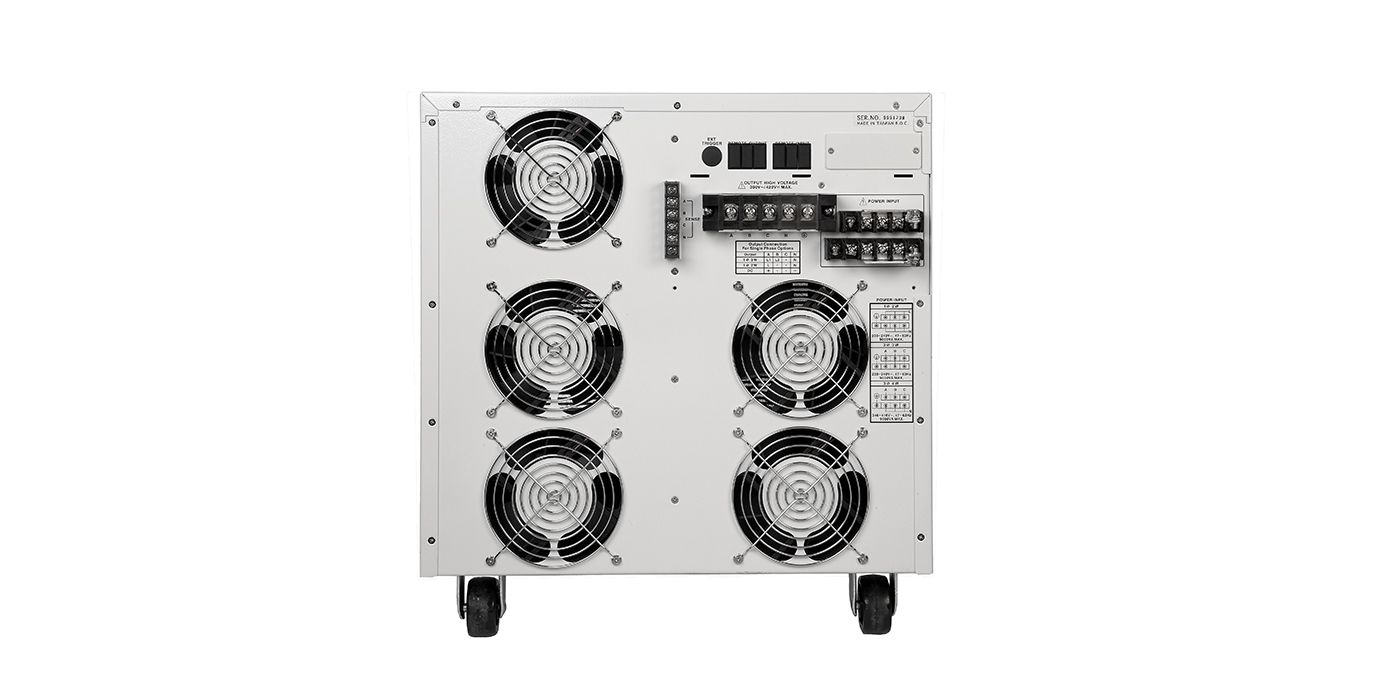

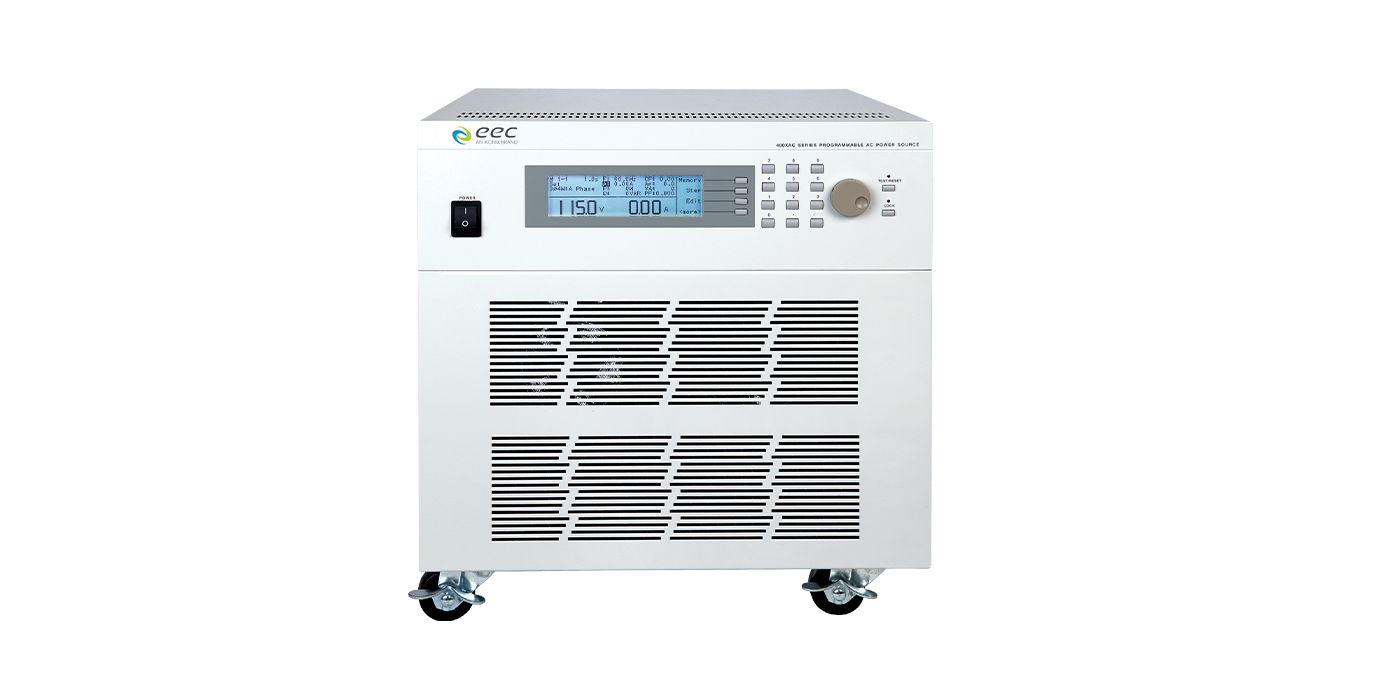

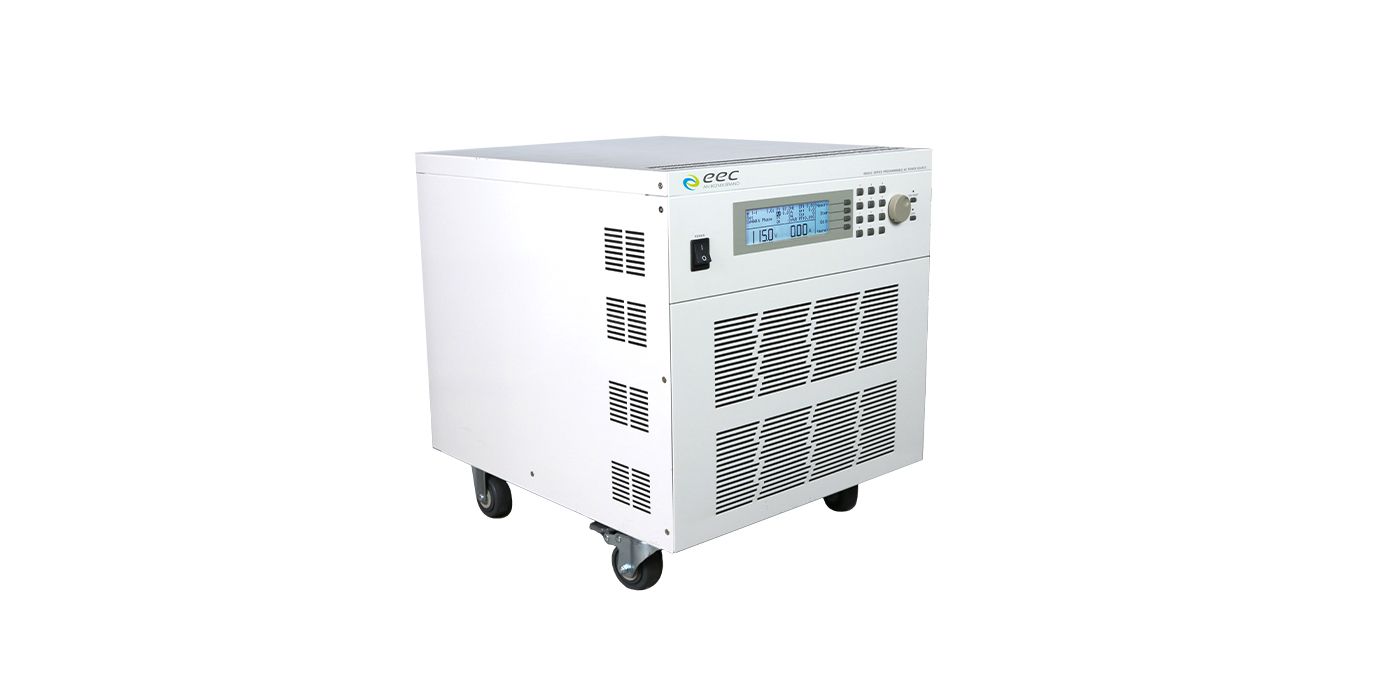

400XAC Series
Our 400XAC Series AC Power Sources provides both 1Ø and 3Ø AC or DC power in a single box solution. If you need an AC Power Source with superior application flexibility, look no further than the EEC 400XAC.
ติดต่อเรา เพื่อสอบถามราคาสินค้า
รายละเอียดสินค้า

400XAC Series

Our 400XAC Series AC Power Sources provides both 1Ø and 3Ø AC or DC power in a single box solution. If you need an AC Power Source with superior application flexibility, look no further than the EEC 400XAC. Ideal for both production and laboratory use, this 3 phase AC Power Source provides a unique feature set at a competitive price point. Our exclusive SmartCONFIG feature allows the 400XAC Series to switch from 1 phase to 3 phase power with the push of a button. This flexibility maximizes your investment while providing you the AC and DC power that your application needs. The 400XAC Series AC Power Source includes the following models: 430XAC and 460XAC.



Programmable Output Switching

The 400XAC series delivers programmable 1Φ/3Φ/DC output power in a single unit.



Synchronous Signal Capture

Synchronic signal output (ON/OFF/EVENT/External Trigger) functionality provides a useful tool for external monitoring, triggering use, and power analysis.





High Loading Capacity

The 400XAC series supports withstand inrush current up to four times the rated current, making it suitable for any high-inrush current loads (e.g., motors and compressors).



Customizable Output Waveform for Various Simulations

Adjustable starting and ending angle of the output waveform to simulates any operational circumstances.





Power of OCF

EEC proprietary Over Current Fold (OCF) function automatically adjust voltages, maintaining current for activating the DUT.



Design With Energy Saving

The built-in active power factor correction (PF>0.97) allows efficient conversion of electrical power into productive output, consuming less power for additional energy savings.

Specification



 Models 430XAC 460XAC
 Power Output 3 kVA 6 kVA
 Voltage Output Up to 600 VAC or 300 VAC per Phase Up to 600 VAC or 300 VAC per Phase
 Max Current 9.2 A/4.6 A 18.4 A/9.2 A
 Frequency Up to 1000 Hz Up to 1000 Hz
 Phase 1Ø and 3Ø 1Ø and 3Ø
 PC Interface Yes Yes
