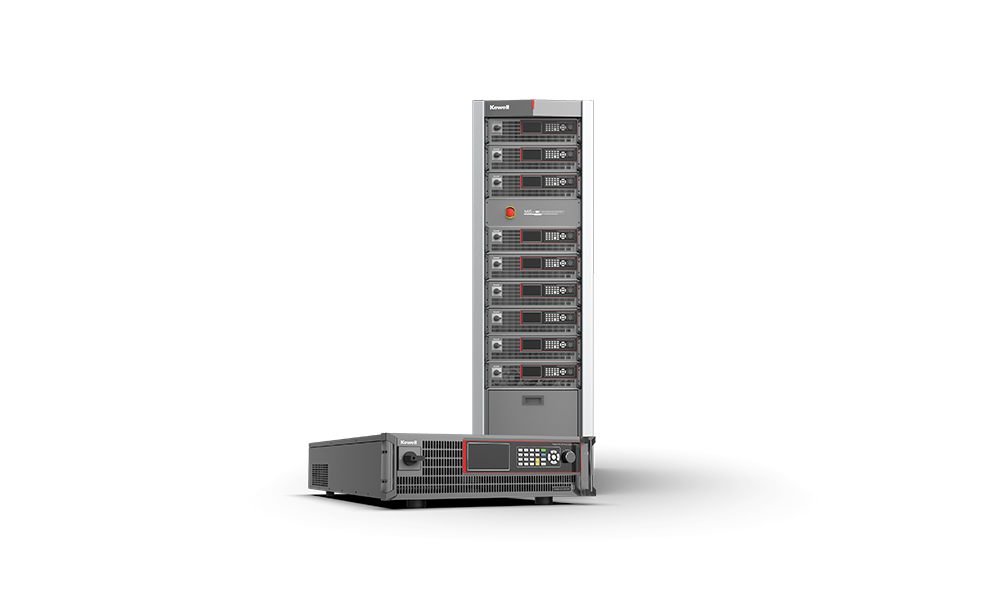

The C3000 Series is a high-precision programmable DC power supply boasting wide voltage range, high dynamic performance, and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely used in industries such as PV, EV, and aviation.

Description

• High power density design: 30kW in 3U
• Power output range: 0 ~ 30kW
• Current output range: 0 ~ 180A
• Voltage output range: 0 ~ 2000V
• Parallel connection: up to 20 units
• AC voltage input: 342VAC ~ 528VAC
• PV simulation: Static MPPT, Multi-IV, EN50530, etc.
• RS485/CAN/LAN/USB communication interface
• Protections: OVP, OCP, OTP, OPP, etc.

Model and specfication
