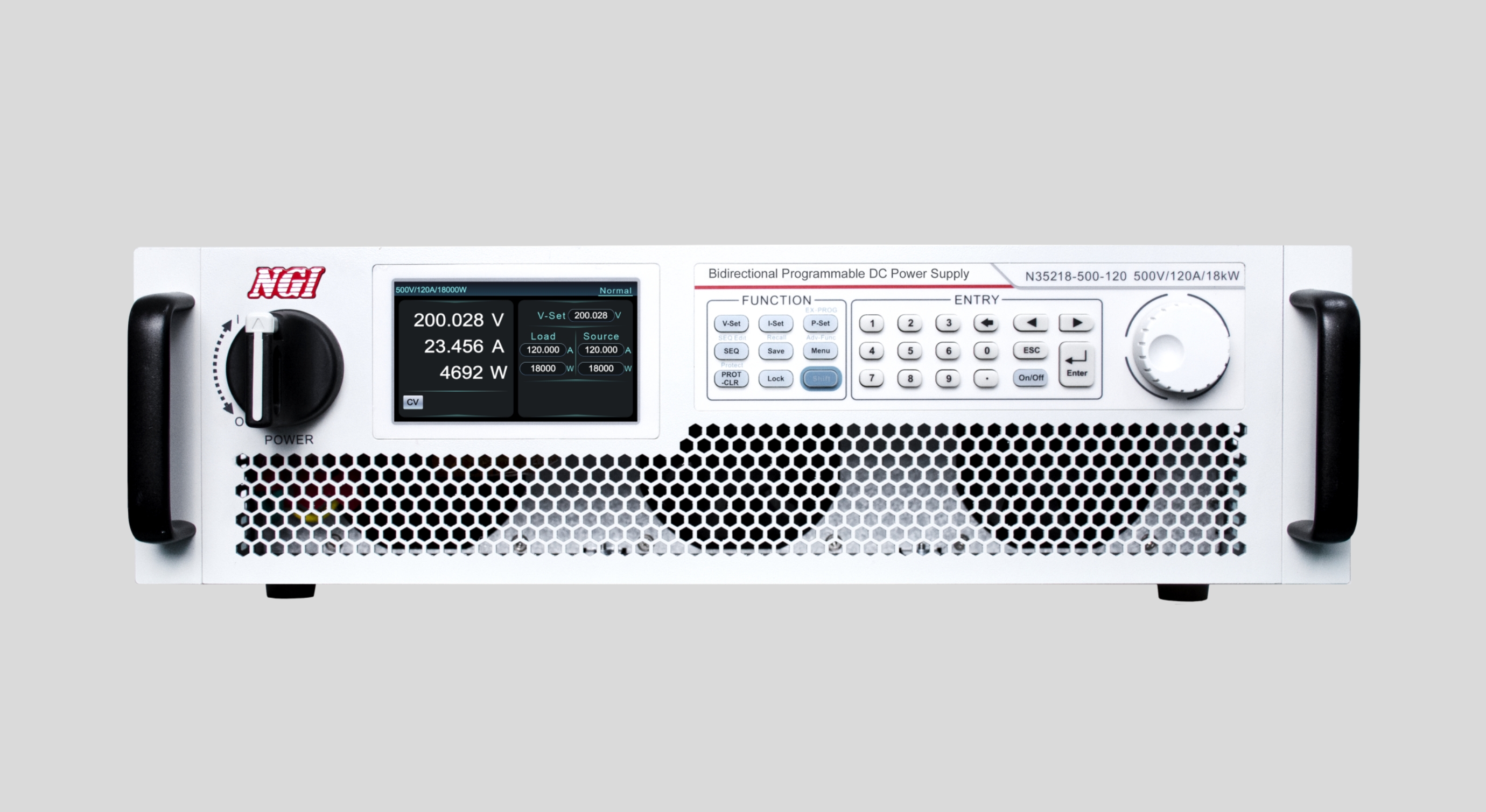

N35200 series is a wide range high-power bidirectional programmable DC power supply. N35200 adopts dual quadrant design, which can supply&absorb the power, and return power to the grid cleanly, so as to save the power consumption and reduce the space heat dissipation, which can greatly reduce the test cost. N35200 has a wide range of measuring applications, with single power range of 6kW to 54kW, current range up to 360A, voltage range up to 1500V. N35200 series provides high precision measurement and multiple testing functions, which can be widely used in new energy, automotive, energy storage, semiconductor, photovoltaic, electric drive and other industries.
●Range: voltage 0～1500V, current ±360A, power ±6kW～±54kW ●Two quadrants seamless switching, the current between the DUT and the grid flow bidirectional ●Voltage accuracy 0.02%F.S., current accuracy 0.1%F.S. ●Supporting battery charge/discharge test ●CC/CV priority selection function, adjustable voltage¤t slew rate ●Internal resistance simulation function, output timing function, voltage output ramp function ●Multiple protection functions, OVP, UVP, ±OCP, ±OPP, OTP, power failure protection ●LAN port and RS232 interface as standard, GPIB, CAN, RS485 and USB as optional ●Supporting PV matrix I-V curve simulation function (optional) ●Equipped with high-voltage isolation digital & analog, and monitoring interfaces
Bidirectional current, seamless switch between source and load N35200 series DC source can not only provide external power, but also absorb power, and return electric energy to the grid cleanly. N35200 series bidirectional power supply can be converted continuously seamlessly between the output and absorbed current, effectively avoiding voltage or current overshoot. It is widely used in power battery, UPS, battery protection board and other energy storage equipment testing.
Wide range of output design N35200 series bidirectional DC power supply adopts a wide range design. A single power supply can output a wider range of voltage and current under the rated output power, satisfying engineers' test application scenarios for products of various voltage/current levels, and greatly reducing purchase cost and space occupancy in laboratory or automated test systems.
CC&CV priority function N35200 series has the function of setting voltage-control priority or current-control loop priority, it can adopt the optimal working mode for testing according to the characteristics of DUT, so as to better protect DUT.As shown in Figure 1, when it needs to reduce voltage overshoot during testing, the voltage priority mode should be used to obtain a fast and smooth rising voltage. As shown in Figure 2, when it needs to reduce current overshoot during testing, the current priority mode should be used to obtain a fast and smooth rising current.
Fast dynamic response N35200 series can achieve seamless switch between current output and current sink. Take N35218-500-120 for example. The switch time from source 120A to sink 120A is less than 2ms as below figure.
●Laboratory, production line ATE automatic test system ●Photovoltaic inverter, hydrogen fuel cell, solar cell matrix and other new energy fields ●High-power energy storage, UPS, micro grid inverter and other energy storage applications ●BOBC, DC-DC, motor drive, automotive electronics and other automotive fields ●Semiconductor and components, laser, high power LED and other semiconductor testing fields ●Communication equipment, UAV, aerospace electronics, welding/electroplating, etc ●Charge and discharge test of power battery, lead storage battery and super capacitor
Note 1: For other specifications, please contact NGI. Note 2: All specifications are subject to change without notice.
≤50ppm/℃
