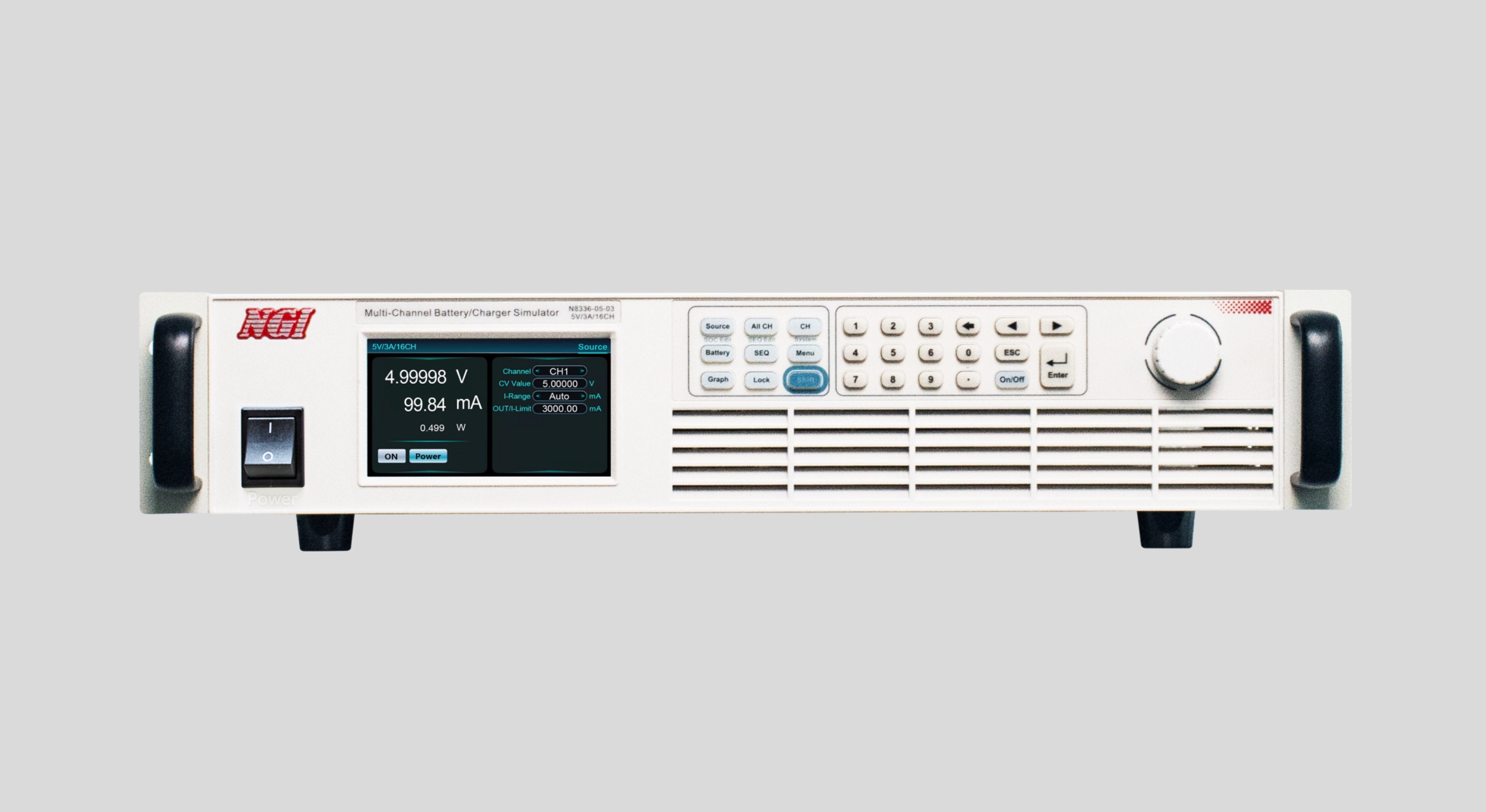

N8336 is a programmable battery simulator with low power, ultra-high accuracy and multi-channel. N8336 standalone supports up to 16 channels, and each channel is isolated, which is convenient for multi-channel series connection. N8336 series supports nA-level current measurement, supports source mode, charge mode, SOC test, SEQ test, real-time curve and other test functions. Its application software is easy to use and can meet the needs of multi-channel, multi-parameter and complex test environments.
●Voltage range: 0~5V/0~6V ●Current range: 0~1A/0~3A ●Voltage accuracy up to 1: 60,000 ●nA level current measurement ●Single device up to 16 channels ●Supporting SOC test, SEQ test, real-time curve, etc. ●16-channel communication response time ≤10ms ●LAN port,RS485 interface,CAN interface
Ultra-high integration, single device with up to 16 channels N8336 series adopts a standard 19-inch 2U size, with up to 16 channels in a single device. Each channel is isolated. One device can support 16-station test simultaneously, which greatly reduces the instruments used and improves test efficiency.
Ultra-high voltage accuracy, nA level current measurement N8336 series has an ultra-high voltage accuracy of up to 1/60,000, with current resolution up to 10nA and voltage resolution up to 10μV. Up to 0.1mV voltage accuracy and nA-level current measurement can provide high accuracy DC power supply and ultra-high accuracy voltage/current measurement for product test, which can be widely used in R&D and product performance test for BMS/CMS, portable consumer electronics (Bluetooth headsets, electric tools, etc.).
Series connection available to simulate working condition of battery pack
When simulating multiple strings of battery cells, N8336 supports multiple devices connection in serial mode. Users can realize remote control and other automatic tests on the application software.
Ultra-fast transient response without overshoot The low output noise is the true DC characteristic of the battery cell without ripple. When the DUT dynamically changes, N8336 can promptly provide a stable DC output and reduce the surge voltage damage to the DUT. For non-static products test applications, N8336 series can supply a stable DC source timely. N8336 series has fast dynamic response to simulate real batteries.
Battery simulation suitable for BMS chips test of various specifications
N8336 series battery simulators have multiple functions and features, supporting Source, Charge, SOC Test, SEQ Test, Graph, All CH CAN setting,etc. One device can achieve multiple uses, streamline test equipment and optimize test procedures. N8336's internal circuit is optimized for different chips, which can be adapted to test BMS chips of various specifications.
●BMS/CMS test for new energy vehicle, UAV and energy storage ●Portable consumer electronics R&D and production, such as mobiles, bluetooth earphones, smartwatch, etc. ●Calibration of voltage acquisition device, such as fuel cell voltage monitor
Note 1: Load varies from 10% to 90% by full voltage output, with voltage recovering within 50mV of previous voltage. Note 2: For other specifications, please contact NGI. Note 3: All specifications are subject to change without notice.
