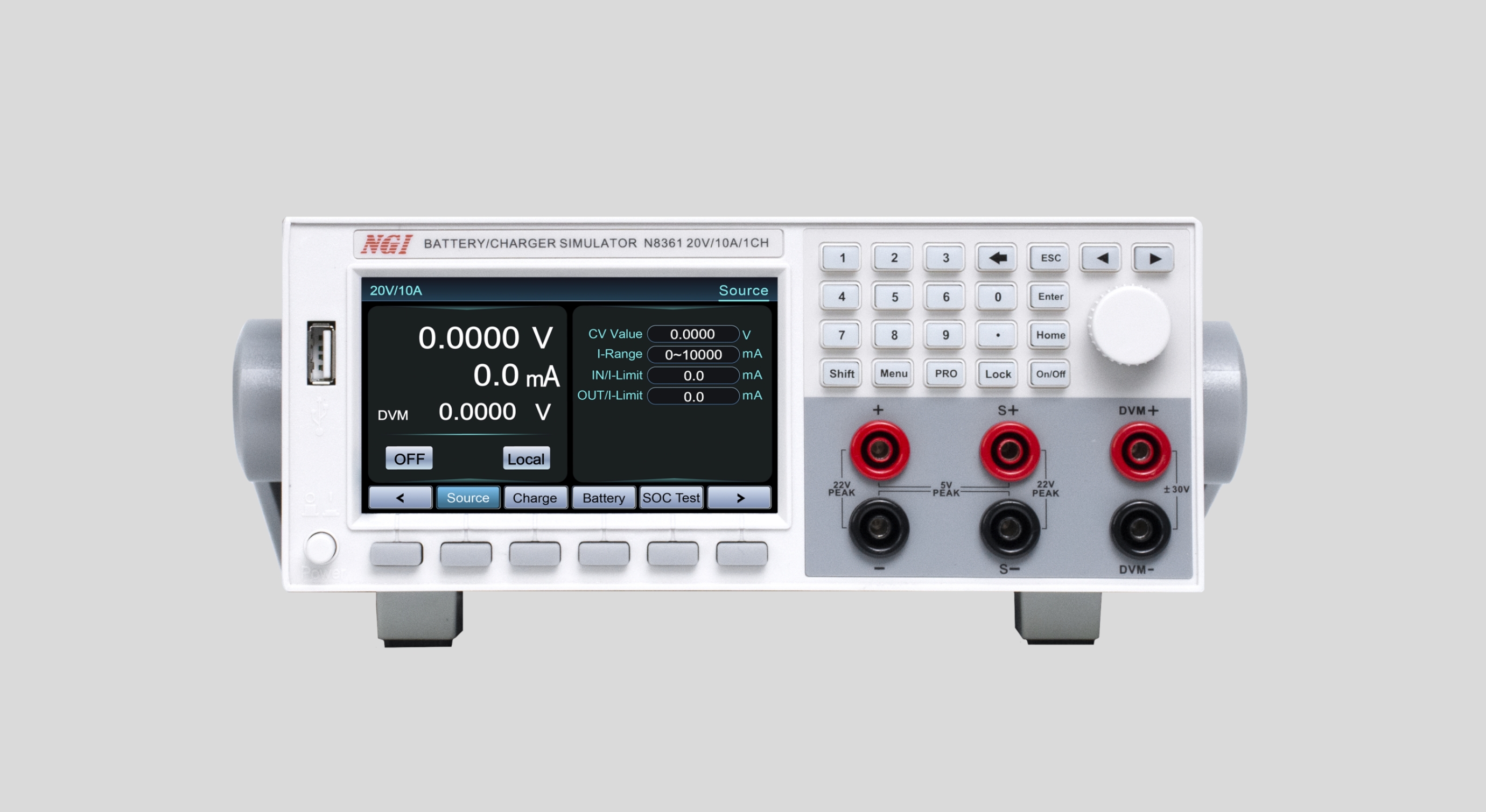

N8361 is a high performance battery simulator with power up to 180W, covering the specifications of lithium battery for consumer electronics mainstream market. N8361 supports a variety of test functions, such as power mode, charging mode, battery simulation, internal resistance simulation, SOC simulation, fault simulation and can achieve a variety of battery characteristics simulation. The current flows bidirectional and the source load state changes quickly. N8361 products can be widely used in the field of consumer electronics testing.
●Voltage Range:0~20V ●Current Range:-10A~+10A ●Single channel power up to 200W ●Voltage rise and fall time ≤50μs ●Current Accuracy up to 1μA ●High precision DVM ●Support front and rear outlet, easier for desktop & integration ●With digital I/O, supporting trigger test ●LAN/RS232/CAN Interface
Current flowing bidirectionally to make it both a power supply and a load
The current flows in both directions. N8361 can both suck and output current, and the current is up to 10A. The output port has a switch component, and the off state disconnects the physical connection with the external loop.
Variable output impedance allowing battery internal resistance simulation
N8361 has the battery internal resistance simulation function, and supports resistance value programming. The programmable range is 0-20Ω, which can emulate the variation graph consistent with the real battery internal resistance characteristics.
Front and rear wiring design
N8361 is equipped with banana jack at the front panel and output terminal at the rear panel, which is easy for desktop application &integration, and improves the test efficiency.
DVM test function N8361 series provides basic circuit measurement function. It has one channel built-in DVM to test external voltage. The voltage range is -30V ~ 30V, and the resolution is 0.1mV. The LCD screen will show the dynamic data, which is convenient for users to observe the voltage changes.
●Battery protection board test ●Portable consumer electronics R&D and production, such as mobiles, bluetooth earphones, smartwatch, etc. ●Power tools production test, such as electric screwdriver ●Testing of Battery powered, small power supply such as DC-DC, wireless charging and other product ●Battery maintenance equipment testing
Voltage Rise Time
10%-90%F.S. Variation Time)
(10%-90%F.S. Variation Time)
Voltage Fall Time
(90%-10%F.S. Variation Time)
Note 1: Load varies from10% to 90% by full voltage output. Note 2: Load varies from 10% to 90% by full voltage output, with voltage recovering within 50mV of previous voltage.
Note 3: For other specifications, please contact NGI. Note 4: All specifications are subject to change without notice.
