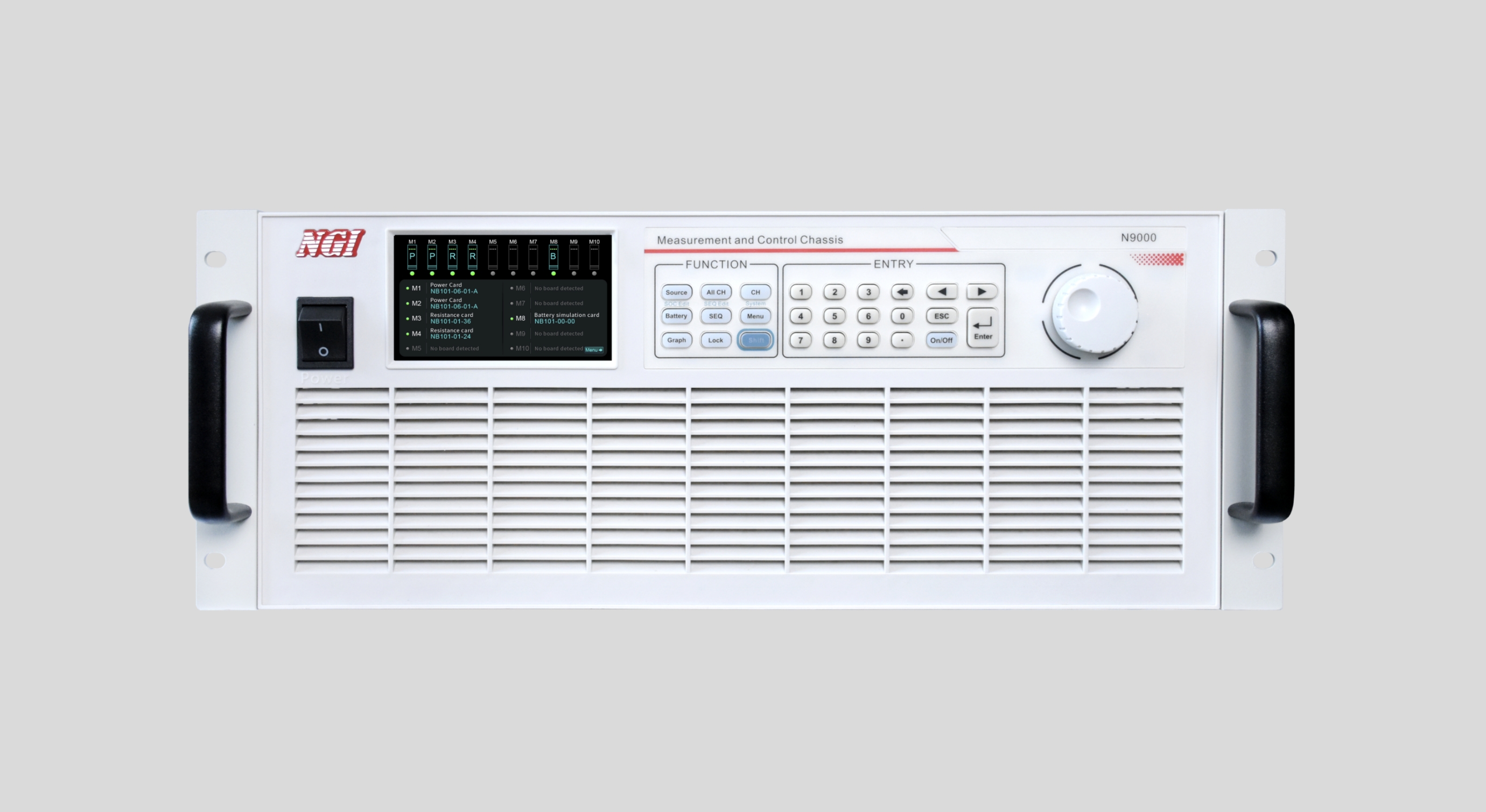

N9000 is an ultra-high integration dual-quadrant modular battery simulator with high real-time, high-synchronous, high-power , consisting of N9000 measurement and control chassis and a variety of modules. N9000 is a standard chassis with 4U height and 19-inch width, support for the insertion of battery simulation modules, programmable resistance modules, high-voltage power supply modules and other types, the chassis can be integrated into 10 slot measurement and control modules, electrical isolation of the modules. N9000 series supports local/remote control and synchronous trigger function, which can realize multi-module high-speed synchronous control, and is widely applicable to multi-channel, high-integrity, high-power automated test and measurement scenarios.
The NB101 series is a high-precision, dual-quadrant programmable battery simulation module that supports voltage accuracy up to 0.1mV and μA-level current measurement. It is equipped with various test functions such as power mode, SOC simulation, sequence test, graph and fault simulation. It can meet the requirements of BMS HIL test system, AFE chip, energy storage, electric vehicle, electric two-wheeler/tricycle, base station power supply, and other multi-scenario BMS test applications.
NB102 series is a high-precision, multi-channel programmable resistance module, resistance range: 0Ω~11.11MΩ, programming accuracy up to 0.1%. The flexible design supports 12/24/36 channels with a resolution up to 1Ω, which can be widely used in simulation test scenarios such as NTC resistors and resistive sensors.
NB106 is a programmable high-voltage power supply module, the product has 1200V/2500V voltage output specifications, voltage accuracy is as high as 0.05%+0.05% F.S., supports CV, CC, SEQ, Sweep and other operating modes, and can be widely used in automotive BMS, energy storage BMS and other scenarios.
N9000 is an ultra-high integration dual-quadrant modular battery simulator. The standard chassis can integrate 32 channels of single cell simulation, 32 channels of battery fault simulation and 36 channels of temperature simulation and a channel total voltage simulation, which effectively saves users' space. Single module with 4 channels for battery simulation, single module with 12/24/36 channels optional for temperature simulation, high voltage power module 1200V/2500V selectable. With multiple models, users can choose products according to the actual needs, which is convenient for subsequent expansion.
As a high real-time, high-synchronous measurement and control platform, the N9000 series supports Gigabit LAN and CANFD communication, hardware synchronous triggering and high-speed synchronous clocks, with command response speed of ≤1ms and multi-channel synchronization of ≤200μs, which is particularly suitable for high-speed simulation test such as BMS HIL.
AFE chip is the core component of BMS, with the management getting more and more refined, the voltage acquisition accuracy of AFE chip and BMS is getting higher and higher. NGI has launched 0.1mV ultra-high precision battery simulator since 2016, which has been widely recognized by the industry and become the first choice for AFE chip testing. The modular battery simulator launched under the N9000 measurement and control platform supports 0.1mV and 0.5mV voltage accuracy, which can meet the industry's high-precision testing needs.
Product Model
Specification
Configuration
Module Model
Qty
6V/±1A/8CH Battery simulator Voltage accuracy：0.1mV
Note 1: For other specifications, please contact NGI. Note 2: All specifications are subject to change without notice.
Note [1]: 600kΩ , 6MΩ models support NTC short-circuit simulation, NTC open cir cuit simulation
